Grid project Obfelden – Samstagern

Swissgrid is upgrading the 150-kilovolt line between Samstagern, Thalwil, Waldegg (Zurich) and Obfelden to 220 kilovolts (kV) in stages. By doing so, Swissgrid will strengthen the security of supply for the city of Zurich and the western shore of Lake Zurich in the long term.

Your contact for this grid project

Martina Bürge
Martina Bürge

Phone +41 58 580 21 11
info@swissgrid.ch

220kV line
220kV line
220 kV underground cabling
220 kV underground cabling
Existing line
Existing line
Substation
Substation

Overview

  • The current 150 kV line between Samstagern (Richterswil), Thalwil, Waldegg (Zurich) and Obfelden operated by the electricity company of the city of Zurich, ewz (Elektrizitätswerk der Stadt Zürich), will be upgraded to 220 kV in stages.
  • Connecting the Thalwil and Waldegg (Zurich) substations to the extra-high-voltage grid will strengthen the security of supply for the city of Zurich and the western shore of Lake Zurich.
  • The work on the six sections and the dismantling of the existing lines is expected to take until 2030. The construction costs of the entire project amount to around CHF 170 million.
  • Construction work on the first section began in the Gattikon area (municipality of Thalwil) in October 2022. The first construction stage to build six new pylons between Schweikrüti and Sihlhalden was completed in October 2023. The current line, which partly runs through local recreation and residential areas, will be dismantled by the end of 2024. The second construction stage from Sihlhalden to Kilchberg will follow from October 2024 to December 2025.

Project

Initial situation

Currently, the greater Zurich area is much better connected to the extra-high-voltage grid from the north than from the south. In the north, the 220 kV grid reaches as far as the city of Zurich via the Auwiesen and Fällanden substations. In the south, on the other hand, the Obfelden and Samstagern connection points are only connected to the city boundary via one 150 kV line each. Swissgrid is therefore planning to upgrade the line between Samstagern (Richterswil), Thalwil, Waldegg (Zurich) and Obfelden to 220 kilovolts (kV) in six sub-projects. The upgrade is part of Swissgrid’s Strategic Grid.

Why the project is important

With the connection of the Thalwil and Waldegg substations to the extra-high-voltage grid and the reinforcement of the lines between Obfelden and Samstagern, the extra-high-voltage grid will also reach the city of Zurich from the south. This will increase the transport capacity as well as the security of supply for the city and the entire Zurich region. The project is also very important for Swiss Federal Railways (SBB), as two 132 kV railway power lines will be carried on one of the sections. These two lines will connect the Sihlbrugg substation with the Zurich substation, significantly improving the security of supply for SBB in the greater Zurich area.

The extension of the high-voltage lines in the Zurich South area will strengthen the security of supply for the city of Zurich and the entire region.

The six sections of the project

The expansion of the line between Samstagern (Richterswil), Thalwil, Waldegg (Zurich) and Obfelden consists of six sub-projects. The construction costs of the entire project amount to around CHF 170 million. The work on the various sections and the dismantling of the existing line sections is expected to take until 2030.

The six sections of the project between Samstagern, Thalwil, Waldegg (Zurich) and Obfelden

Samstagern substation connection

At the Samstagern substation, modifications to the substation and line must be implemented in order to connect the line, which is currently operated at 150 kV, to the 220 kV grid.

Samstagern – Schweikrüti (Thalwil)

Between Samstagern and Schweikrüti (municipality of Thalwil), the line is already designed for extra-high voltage, but is only operated at 150 kV. Swissgrid is planning to increase the voltage to 220 kV. This will probably not require any major structural measures on the line.

Schweikrüti (Thalwil) – Kilchberg

A legally binding construction permit for a new overhead line along a modified route has been issued for this section. The construction of an underground cable is not possible on this section because two 132 kV SBB lines will be carried on the same pylons as the Swissgrid line. For technical reasons, the SBB lines must necessarily run above ground on this section. The Thalwil substation, which is important for supplying the western shore of Lake Zurich, will be connected to the Schweikrüti – Kilchberg section. As soon as the Thalwil substation is connected to the extra-high-voltage grid, Axpo’s 110 kV Obfelden – Thalwil line (known as the Albis line), which served as an alternative measure, will be dismantled. This will substantially reduce the burden on the residential areas of Langnau and Gattikon.

Kilchberg – Waldegg (Zurich)

The new line from Kilchberg to Frohalp near Zurich Manegg station will be built underground along the motorway. It will then be routed through the conduit blocks built during the construction of the two tunnel tubes of the Uetliberg tunnel before continuing to the Waldegg substation via a two-kilometre underground tunnel (with a diameter of approx. four metres).

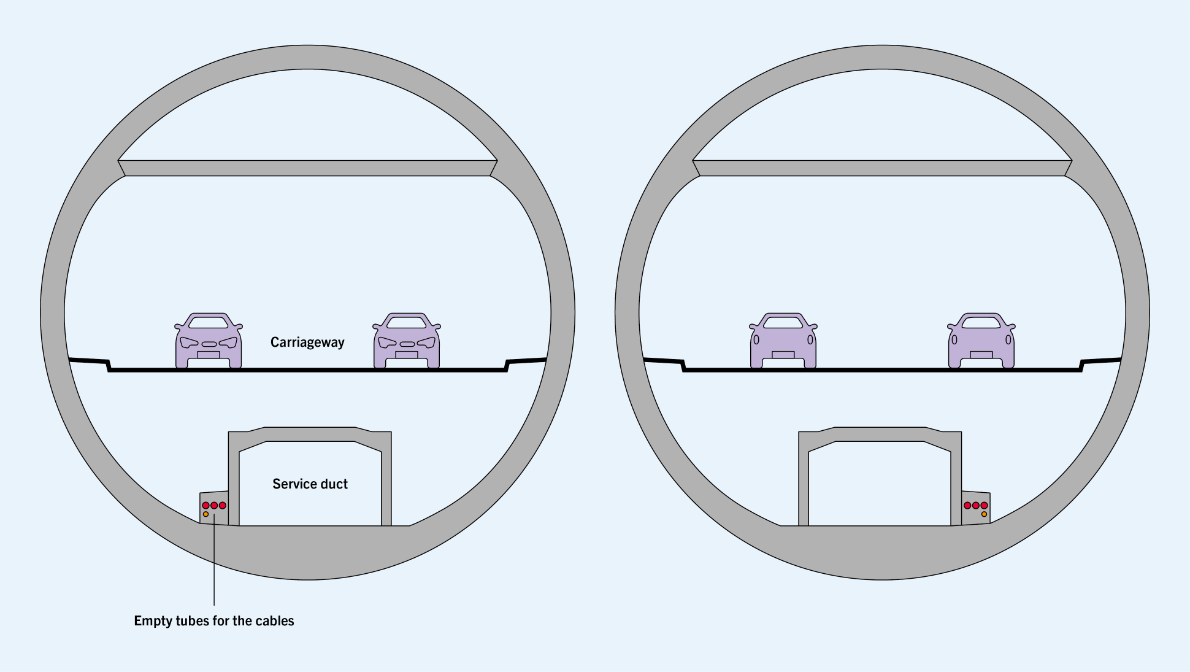

In both tubes of the Uetliberg tunnel, there are already empty tubes for the cables of the extra-high-voltage line next to the service duct.
In both tubes of the Uetliberg tunnel, there are already empty tubes for the cables of the extra-high-voltage line next to the service duct.

Waldegg (Zurich) underground substation

Swissgrid is planning a new underground substation with ewz. From here, electricity will flow into the city of Zurich. The substation will be built underground to minimise the impact on the landscape and the visibility for the neighbouring residential area.

Obfelden – Waldegg (Zurich)

The line between Obfelden and Waldegg (Zurich) is already designed for extra-high voltage, but is only operated at 150 kV. Swissgrid plans to increase the voltage to 220 kV by 2027, so that the Waldegg substation can then be connected to the transmission grid. This will probably not require any major structural measures on the line.


New line in Thalwil in operation since October 2023

Construction work on the new line between Schweikrüti and Kilchberg has been divided into two stages. Swissgrid completed the first stage between Schweikrüti and Sihlhalden within a year.

Building the foundations for the six new pylons
Construction of the six new pylons in the Gattikon area – from the laying of the foundations to the installation of the conductors

The foundations, which consist of 2,200 tonnes of concrete, were built between October 2022 and March 2023. The pylon assemblers then erected six new pylons between April and July 2023 – they carried out this work at a dizzying height, as the pylons are 58 to 85 metres tall. The pylons contain a total of 330 tonnes of steel and 16,800 screws. Finally, from July to September 2023, around 32 km of conductors were installed on the first section of the line, which measures 1.7 km. This was no easy undertaking, as the line crosses the A3 motorway twice.

Construction work on the Schweikrüti (Thalwil) – Kilchberg section has been divided into two stages. The first stage was completed between October 2022 and October 2023, while the second stage will take place between October 2024 and the end of 2025.
Impressions of the first construction stage in Thalwil
1/6
Impressions of the first construction stage in Thalwil
2/6
Impressions of the first construction stage in Thalwil
3/6
Impressions of the first construction stage in Thalwil
4/6
Impressions of the first construction stage in Thalwil
5/6
Impressions of the first construction stage in Thalwil
6/6

Impressions of the first construction stage in Thalwil

Exactly one year after work began, Swissgrid put the new line into operation at an initial voltage of 150 kV so that the old line can be dismantled along this section by the end of 2024. This will visibly improve the landscape around Gattikerweiher and the residential area.

1/4: The dismantling of the old line in Gattikon will provide noticeable relief for the residential area.
2/4: The dismantling of the old line in Gattikon will provide noticeable relief for the residential area.
3/4: The removal of the old line in Gattikon will free Gattikerweiher from the line.
4/4: The removal of the old line in Gattikon will free Gattikerweiher from the line.

Work on the second stage between Sihlhalden and Kilchberg will take place between October 2024 and December 2025. Here, the new line will largely run along the existing route. If everything goes to plan, the overall project will be completed by 2030. The remaining parts of the old line will then be dismantled.


Timetable for the Schweikrüti – Kilchberg section, assuming optimal project progress.
